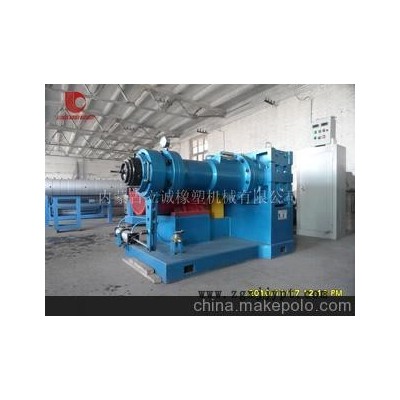

用途：用于一般的膠管、輪胎、膠條等橡膠制品的擠出。         Used for extruding rubber hose , type , rubber strip etc . 結構簡介：    該機由機身、機頭、減速機、電機、等組成。螺桿和襯套采用優質氮化鋼38CrMoALA制造，耐磨性極高。螺紋形式為等深不等距雙頭收斂式結構，機身為鑄鋼材質，主軸承采用9039系列，大大提高承載能力，延長使用壽命。It is composed of machine body , head , decelerator , motor etc . Both the screw and bush are made of 38CrMoALA high quality nitrided steel and have good abrasive resistance . The screw has double thread with equal depth , inequidistant and convergent pitch .. The maching body is made of cast steel . The load-bearing capability and life are improved greatly by using 9039 series of primary bearing . 主要性能參數：Specifications  型號Type螺桿直徑ScrewDiameter(mm)螺桿長徑比L/D螺桿轉速Revolving Speed of Screw(r/min)生產能力ProductiveCapability（Kg/h）XJ-90Ф901：5.387.5-75280XJ（L）-115Ф1151：4.820/30/40/60420XJ-150Ф1501：4.625-75920XJL-150Ф1501：5.240520
使用動力：（XJ-115）主電機：   YD200L-4/6                        功率22/18.5 kw                 轉速1450/980r/min            電壓380V 其他電機：/                                         功率   /                       轉速                                     電壓 蒸汽：   供機頭、機身、螺旋3段  壓力  0.4 MPa         消耗量             For head，body＆screw   壓縮空氣：/                               壓力                       消耗量 冷卻水： 供機頭、機身螺旋3段     壓力  0.15MPa          消耗量             For head，body＆screw    壓力水：  /                                壓力                       消耗量 過熱水：  /                                 壓力                       消耗量 生產能力：420 Kg /h                    人員配備1-2人
重量（Kg）2300 外形尺寸（mm）：    1450×720×1280 制造單位： 內蒙古立成橡膠機械有限公司
